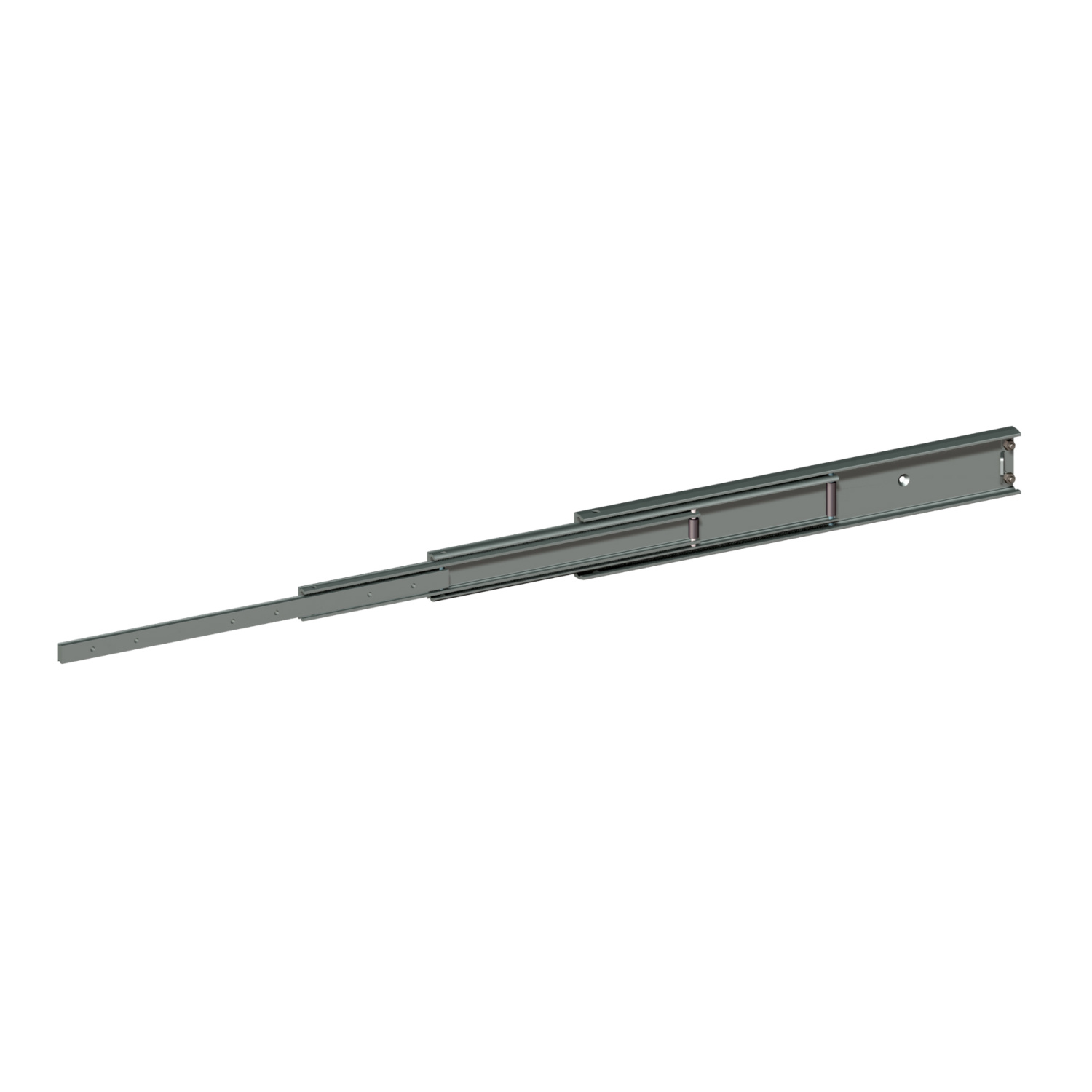

About the 5045 - 140% extension

The 5045 is an all aluminium slide with a maximum load carrying capacity of 92kg (per pair).  It has the same size envelope as the 5040 slide, but is a lower cost alternative to the steel slide. The 5045 can be made to customer specification. Similar to the steel slides the 5045 can be built with both 100% and 140% extension.

  • All aluminium slide
  • Non standard slides are available (custom lengths/extensions/fixing methods)
  • Standard slide non locking, lock in available on request
  • For applications covering shock and vibration please contact our sales team
  • Standard lengths 300mm to 1000mm in 50mm increments
  • RoHS compliant
