About the 5013

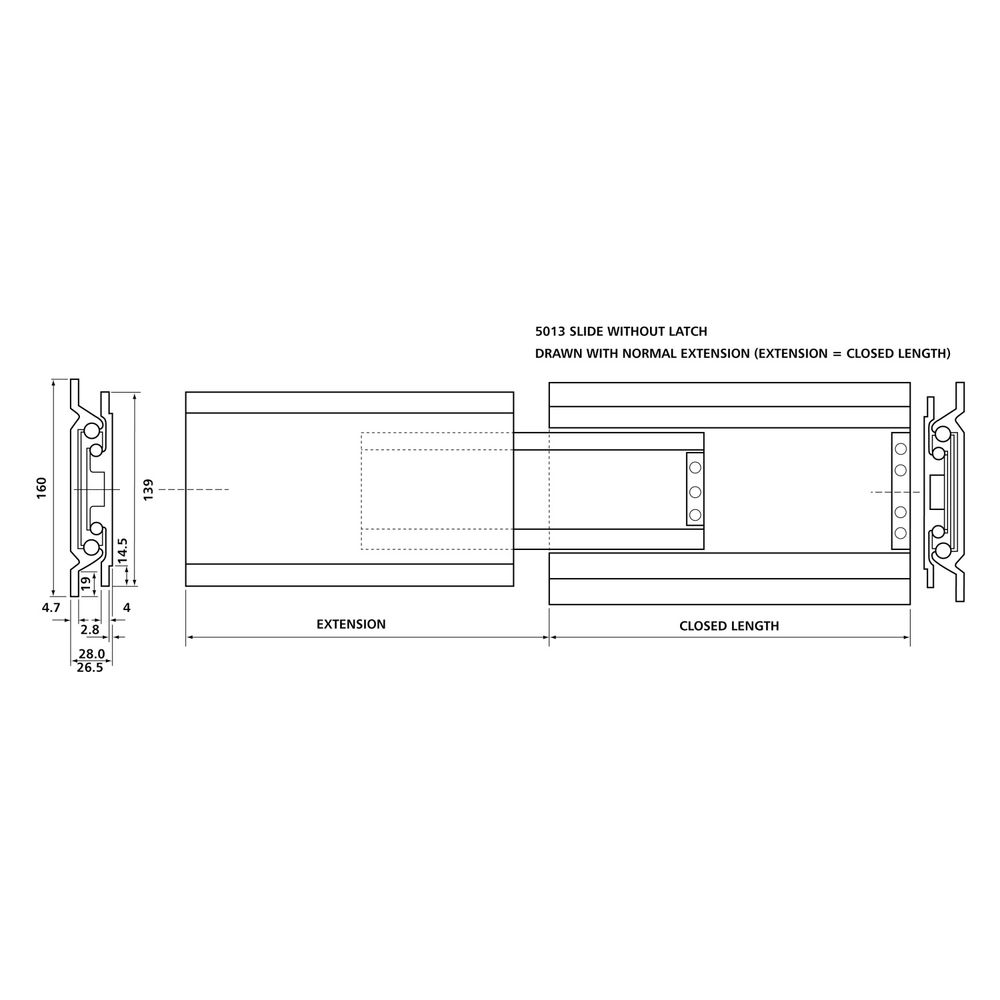

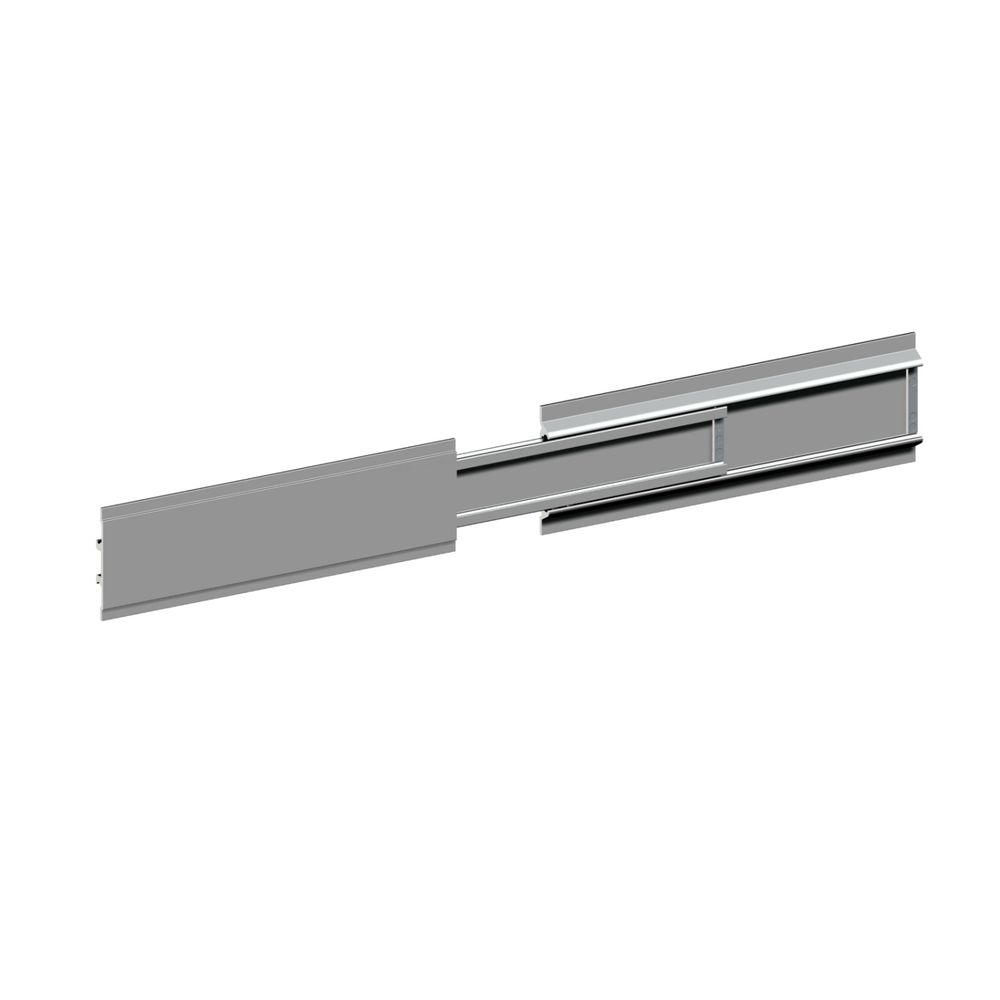

The 5013 is a substantial aluminium alloy ball bearing slide, the construction of which is clearly shown.  The wide flanges provide adequate mounting areas for the robust fixings needed for the loads which this slide can carry.  The slide can be supplied with an integral latch which locks the slide in both open and closed positions (up to 100% extension only).  5013 will carry heavy loads even under vibration and shock conditions.  It is increasingly being specified for naval equipment.  Can be supplied with or without the latch shown.

  • All aluminium slide

  • Non standard slides are available (custom lengths/extensions/fixing methods)

  • Standard slide non locking, lock in/lock out available on request

  • Can withstand shock vibration please contact our sales team

  • Standard lengths 250mm to 1000mm in 50mm increments

  • RoHS compliant

  • 5 beam version available for higher loads/over extension
