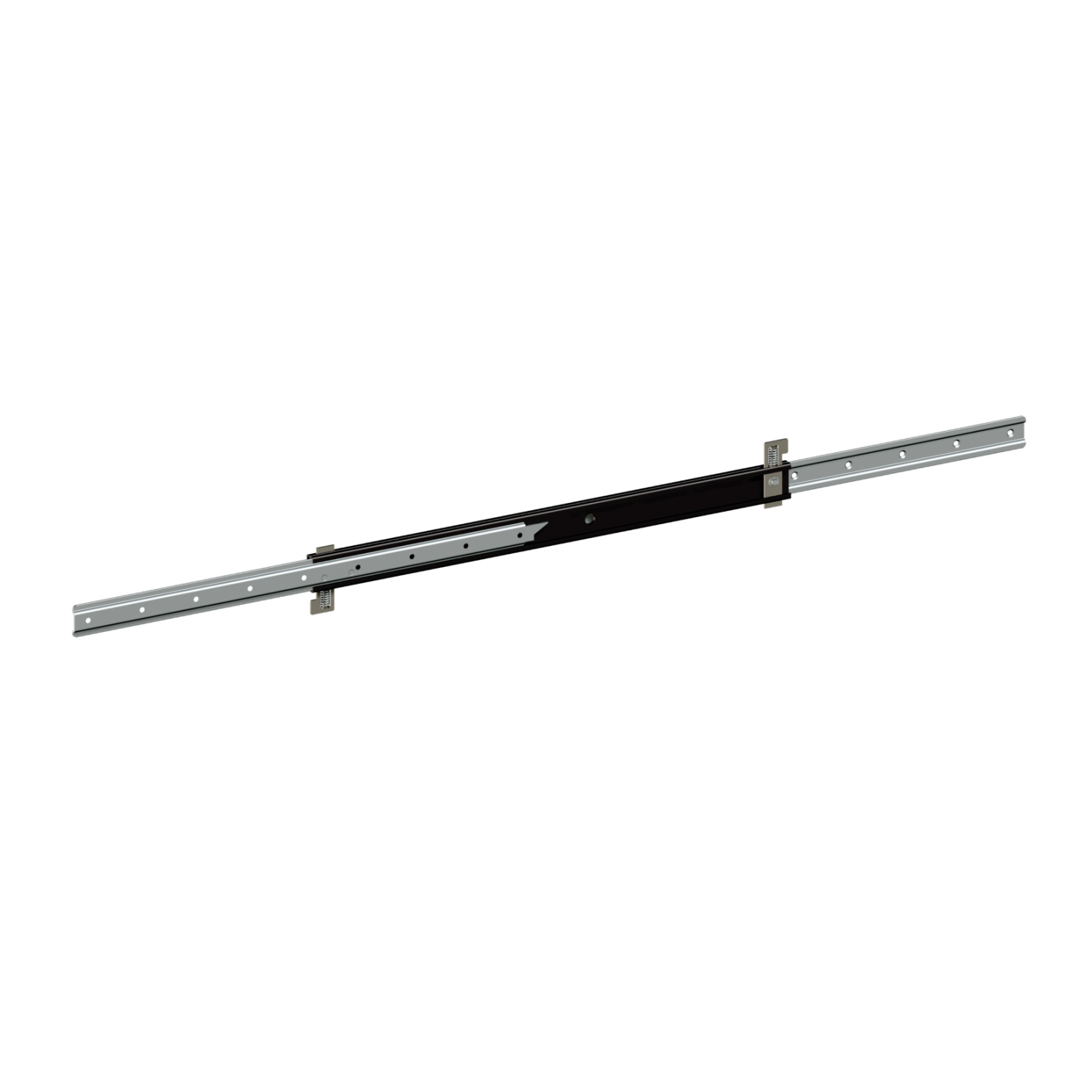

About the 5012 TN

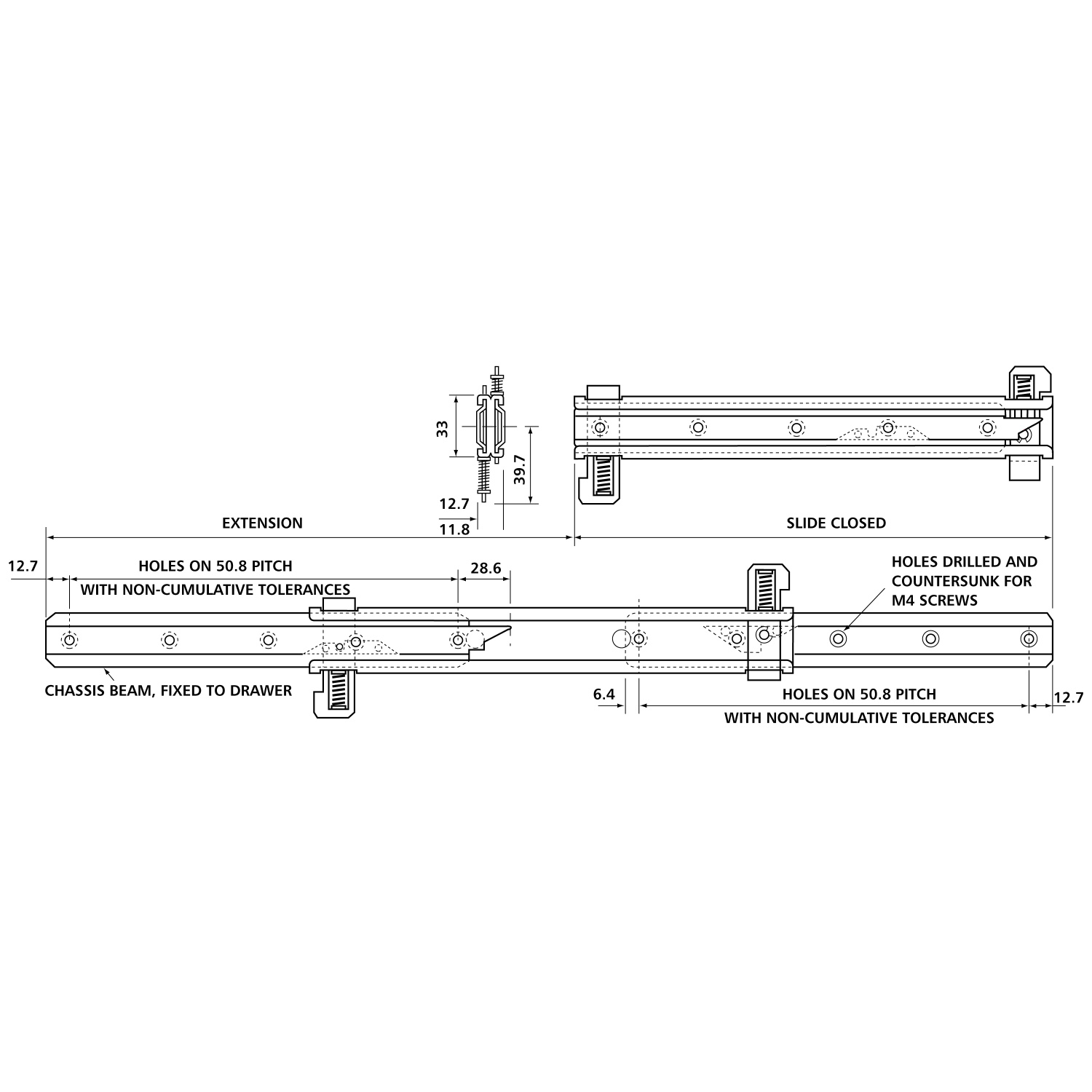

The 5012 TN incorporates a trigger mechanism which automatically locks the slide when it is fully withdrawn.  Gentle finger pressure on the front trigger releases the catch, enabling the drawer to be either closed or removed.  The rear latch is automatically operated by a pointed extension of the chassis beam.  The chassis should project beyond this to form a safety guard against possible injury.  The 5012 TN can be comfortably fitted to a 2U high drawer.

  • Steel/nylon friction slide

  • Non standard slides are available (custom lengths/extensions/fixing methods)

  • Can withstand shock vibration please contact our sales team

  • Standard lengths 250mm to 600mm in 50mm increments

  • RoHS compliant
